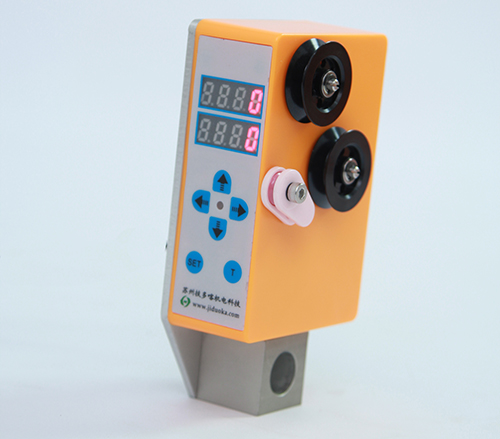

Product Description:

JDK-MB series is a closed-loop system to control the Zhang, the tension Monitor with electronically controlled magnetic brake hysteresis or analog butt set by the machine, the input tension Monitor to PLC via analog of hysteresis or magnetic powder clutch tension setting. Enter the values ​​you need tension on the machine's PLC (formula: 5V voltage hysteresis corresponds ÷ maximum range × number of sheets you need Lectra = set on the PLC voltage), it can be hysteresis control by or tension magnetic powder clutch control to the tension value you set, regardless of speed or bobbin winding machines change shape you at work, tension hysteresis loop system or by altering the size of the magnetic powder clutch tension, making the work tension tension values ​​remain within the range you set. This product control precision, the operation is very simple.

Features:

1: Indicator: LED color (white or red).
2: display (screen: Set tension value, the next screen: Real winding tension).
"T" zero key: Before initial use of the program value to zero (red light shall prevail).

：The shift health - for switching the value 0-9
：Under the shift Kin - 0-9 switch for value.
：Left Shift Health - is the displacement value from one thousand to one hundred or ten and a bit.
：Right shift Kin - a value from a shift to ten or one hundred and one thousand
SET：Setting confirm Kin - Function Switch and confirm the set functions.

Instructions
