ZLKZ series of basic operations:

    Fixed mount 1,16MM provide DC24V power and tension interface connection;
     2, the threading is completed in the right way;
     3, press the SET button, white light is entering the tension setting mode, via the ">" shift key and "▲" key to set the tone value increase required;
     4, numerical settings finished, press the SET button to enter the next level functionality (when the indicator is red)
     5, the function indicating "2" to control the trim function, can not be obtained when the value of the desired tension, such as work, by changing the "10" (factory fixed value), the greater the value the greater the tension, the smaller the value the smaller the tension. Adjustable range of "00-99."
     6, all the press the SET button to exit the setting mode is completed;
     7, "T" key to zero key, press the white light is zero.

Instructions for use:

     1: The first level of tension Monitor installed near the product that needs winding end, out packing boxes of green connectors.
         DC24V positive -------- 7 feet-bit access
         DC24V negative -------- 8 feet-bit access
     2: hysteresis or magnetic clutch connection :( this connection is not positive and negative)
         Hysteresis or magnetic brakes -------- 5 feet-bit access
         Hysteresis or magnetic brakes -------- 6 feet-bit access
     3: The product of setting method:

       Step one:

            1-- horizontally fixed the product on the shelf and the tension between the winding machine, to ensure that the shelf does not shake loose as possible in a straight line position. Height as far as  An intermediate height of the two points.
             2-- sure the wiring is correct, 7 and 8 are both negative terminal port can not be reversed, such as the reverse will directly lead to damage to the instrument.

        Step two:

           1 - power on, the instrument displays the value at this time is "0" (see below)


            2 - If the display is not "0", but the other figures, this is due to high-precision sensors detect gravitational relationship, which is a normal phenomenon.
             3 - press and hold the "T" zero button, then the above will be bright red, says cleared completed.

        Step three:
            The method according to schematic complete wire threading, then winding machine from the tensioner to the Monitor. (Note: must be cleared before threading, or wire tension sensor will overlay effect).

        Step four:

            Tension setting:
             1 - Press the "SET" key to enter the function setting mode.

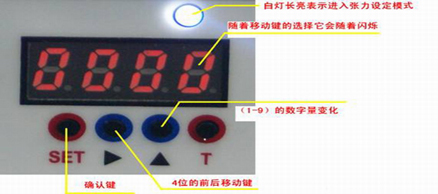

             2 - this time a long bright white light, long bright white light that enter the tension setting state (see Figure 1).


                                (see Figure 1)

           3 - Press the button to select the following two tension values ​​they need (Figure 2).


                          (Figure 2)
            4 - For example: Now you need to set 530 grams, then by selecting the two keys to the "530" on it, as shown below (see Figure 3)


                            (Figure 3)
            5 - After selecting tension Press "SET" (see figure IV) on the tension setting is completed.

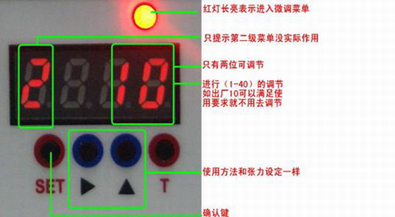

            6 - At this point the display interface will automatically enter the next menu (see Figure E)

            (Figure 4)  (Figure 5)

        This menu function is fine-tuning feature that is on the brand and the Magnetic hysteresis lag actuator performance difference of a regulation, this product factory setting value is "10" as to meet the requirements, you do not need to adjust the .

        Step five:Trimming program

            Press the "SET" key to enter a long red light, when the winding machine work by adjusting the menu "2" tension fine tuning "10" (trim value "01-40," the greater the value the greater the contrary side tension tension smaller), by tension fine tuning to precisely lock tension values ​​you set, set up after the data is automatically saved. (See figure VI)

                 (See figure VI)

      Upon completion of the above settings to fine-tune press the SET button to exit the setting mode, then all the settings is complete.

Note:

      Do not use force to press the tension pulley in the three monitor precision guide wheel in the middle, because the connection is behind the sophisticated sensors, if the external force is greater than the range of the sensor will cause tension display does not work or show damage tension failure.
