Instructions for use:

  1: The first level of tension Monitor installed near the product that needs winding end, out packing boxes of green connectors.
        DC24V positive -------- 7 feet-bit access
        DC24V negative -------- 8 feet-bit access
   2: hysteresis or magnetic clutch connection and tension Monitor connection:
        Hysteresis or magnetic clutch -------- 5 feet-bit access
        Hysteresis or magnetic clutch -------- 6 feet-bit access
        This connection is not positive and negative.
   3: Machine PLC analog output (0-5V) and tension Monitor connection:
        Machine PLC analog output (+) --------1 pin access
        Machine PLC analog output (-) --------2 pin access
        0-5V corresponding analog input tension 0-5000 g
   4: The feature set:
        Step one:
               1-- horizontally fixed the product on the shelf and the tension between the winding machine, to ensure that the shelf does not shake loose as possible in a straight line position. Height as far as two points in the middle height.
               2-- sure the wiring is correct, 7 and 8 are both negative terminal port can not be reversed, such as the reverse will directly lead to damage to the instrument.
        Step two:
               1 - power on, the instrument displays the value at this time is "0" (see below)


      2 - If the display is not "0", but the other figures, this is due to high-precision sensors detect gravitational relationship, which is a normal phenomenon.
               3 - press and hold the "T" zero button, then the above will be bright red, says cleared completed.
        Step three:
               The method according to schematic complete wire threading, then winding machine from the tensioner to the Monitor.
               (Note: must be cleared before threading, or wire tension sensor will overlay effect).
        Step four: Tension setting:
               Machine PLC analog output (0-5V) and tension Monitor connection:
               Machine PLC analog output (+) --------1 pin access
               Machine PLC analog output (-) --------2 pin access
               0-5V corresponding analog input tension 0-5000 g (0.5 V analog input corresponds to 500 grams of work tension,)

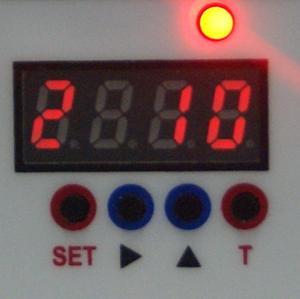

        Step Five: Press the "SET" button to enter the state of tension fine tuning mode
               1 - In this case the display interface will automatically enter the menu "2" (see figure five)

                     (Figure 4)    (Figure 5)

       This menu function is fine-tuning feature that is on the brand and the Magnetic hysteresis lag actuator performance difference of a regulation, this product factory setting value is "10" as to meet the requirements, you do not need to adjust the .

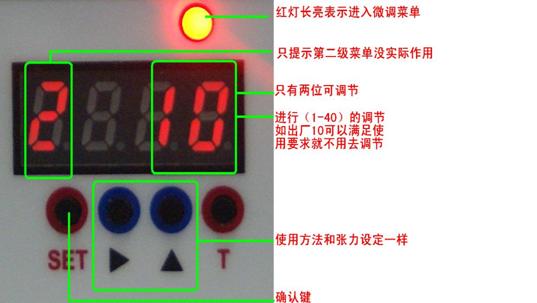

        Step Five: fine-tuning the program
               1- press "SET" button to enter a long red light, in the winding machine work by adjusting the menu "2" tension fine tuning "10" (trim value "01-40," the greater the value the greater the contrary side tension tension smaller) by fine-tuning to precisely lock tension tension values ​​you set, set up after the data is automatically saved. (See figure VI)

                            （ 图六 ）
      Upon completion of the above settings to fine-tune press the SET button to exit the setting mode, then all the settings is complete.

      Note:

      Do not use force to press the tension pulley in the three monitor precision guide wheel in the middle, because the connection is behind the sophisticated sensors, if the external force is greater than the range of the sensor will cause tension display does not work or show damage tension failure.
